To be assembled on short and long frame Santana Sj and Suzuki Samurai, EXCEPT narrow 410. To be assembled between the front axle and the transfer case. Compressed length: 68,5cm. Screws interaxial: 5,6cm . Quality: original

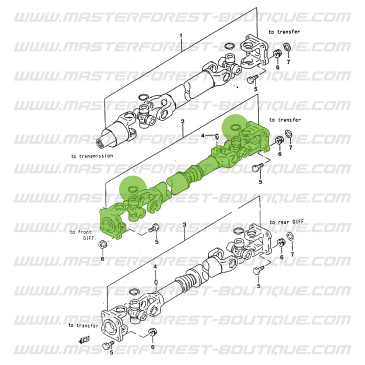

To be assembled on, short or long framed, narrow 410.To be assembled between the front axle and the transfer case.Compressed length : 70,5cm.Working length : 72,5cmScrews interaxial : 5,5cm.
To be assembled between the rear axle and the transfer case. Cross handle axle to axle compressed length : 410mm. Fastening interaxial : 56mm. Quality: original

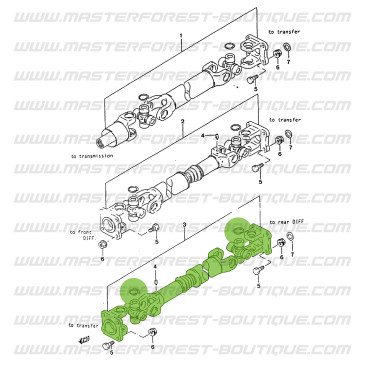

To be assembled on long framed, narrow 410.To be assembled between the rear axle and the transfer case.Compressed length : 85cm.Working length : 87cm.Screws interaxial : 5,5cm.

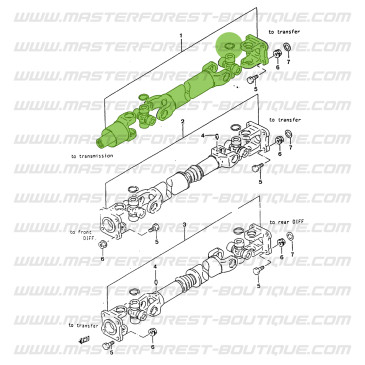

To be assembled between the gearbox and the transfer case. Axle to u-joint axle length : 228mm. Fixing interaxial : 55mm.
Dimensions: 23.72mm x 61.60 mmSuitable for Suzuki Santana Samurai 4WD.Circlips and a grease nipple included.Standard quality.
Dimensions: 23.72mm x 61.60mmSuitable for Suzuki, Santana, Samurai and Jimny 4WD.Circlips included.reinforced quality.
Dimensions: 25mm x 64mm.Suitable for Suzuki Santana Samurai 4WD.Circlips and a grease nipple included.Standard quality.
Dimensions: 25mm x 64mm. Suitable for Suzuki Santana Samurai 4WD.Circlips included.Enhanced quality.
Manual grease pump.Its small size enables to have an easy access to u-joint grease nipple.Delivered without grease.
To be assembled on front or rear driveshafts.
Mouting flange for cross piece (25mm x 64mm).To be assembled on Suzuki santana 410, 413, samurai, essence, diesel and turbo diesel.
To be assembled on long framed Samurai (wide drive axle). To be assembled between the rear drive axle and the transfer case. Cross handle axle to axle compressed length : 755mm. Fastening interaxial : 56mm. Quality: original
Transmission sliding yoke, gear box side, for 25mm x 64mm U-joint.To be assembled on petrol / diesel / turbo diesel Suzuki Santana 410, 413 4WD.
This screw is used to fix the drive shaft.To be assembled on petrol and diesel Suzuki Santana Samurai 4WD.
Mouting flange for cross piece (24mm x 62mm).To be assembled on Suzuki santana 410, 413, samurai, essence, diesel and turbo diesel.
To be assembled on the transfer case’s original silent blocks of Suzuki Santana Samurai.M10 nut x 125 threading + M10 washer.
