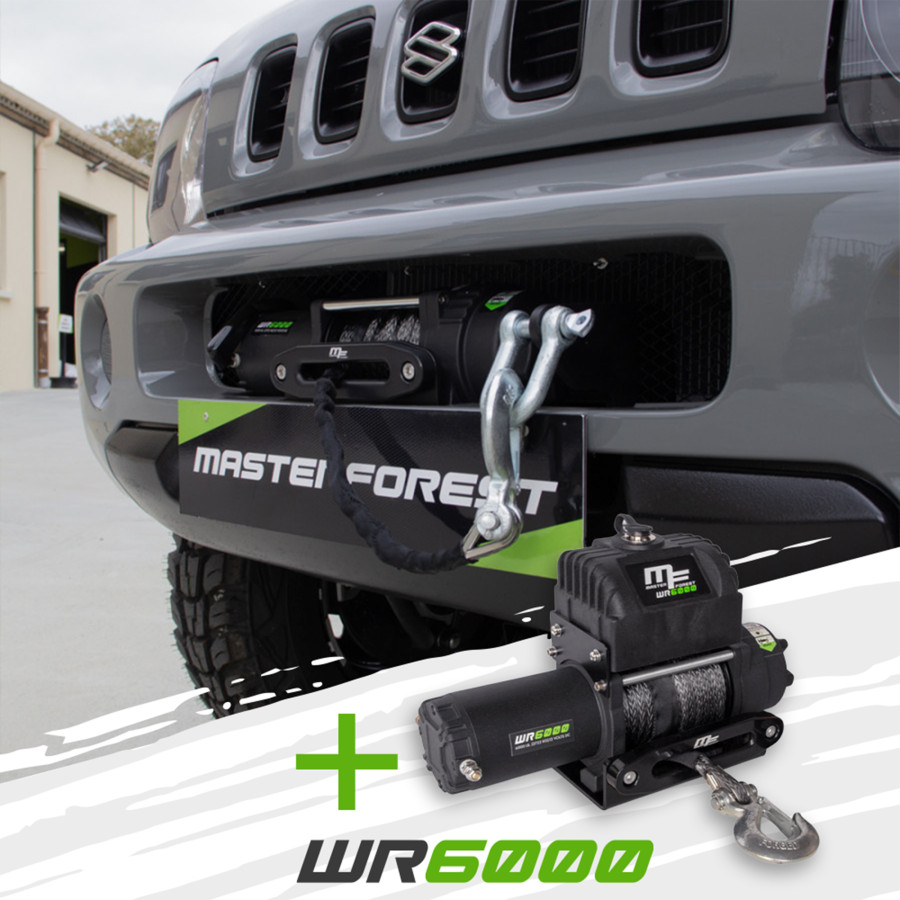

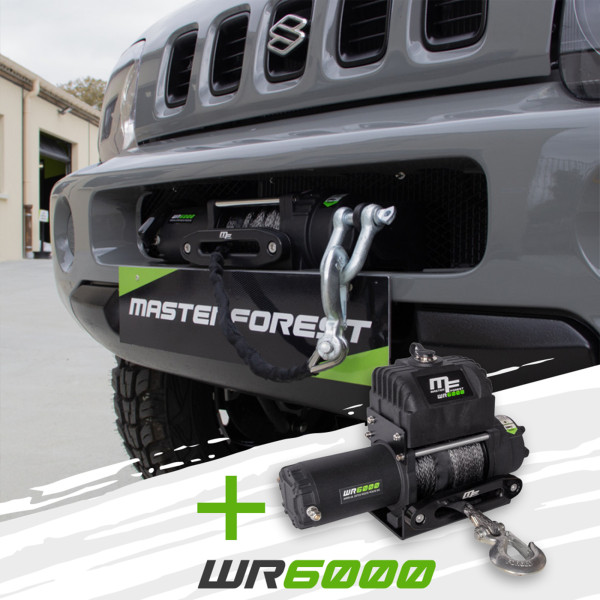

Winch package WR6000 + Suzuki Jimny petrol bracket 1998-2018

MF steel off-road winch mount for Suzuki Jimny 1998–2005. Made in France with a premium black epoxy finish.

Allows integration of a winch behind your original bumper. Compatible with MF WR6000 winches (included).

Compatibility

• Vehicle: Suzuki Jimny petrol with G13BB engine (with or without air conditioning)
• Years: 1998–2005
• Use: Off-road / extreme terrain

Specifications

• Brand: MF
• Type: Winch mount
• Material: High-strength steel
• Finish: Black epoxy coating
• Manufacturing: 100% made in France
• Winch compatibility: MF WR6000 (included)
• Shackle: Included
• Design: High-end materials, reinforced durability

Installation

• Requires cutting the inner part of the bumper
• Drilling required (drill and drill bits needed)

Package contents

• 1 × MF off-road winch mount
• 1 × Control box bracket for the engine bay
• 1 × Installation kit (hardware and instructions)
• 1 × WR6000 winch

MF WR6000 Winch

Complete kit with fairlead, synthetic rope, wired and wireless remote control.

Pulling capacity: 6000 lb (2.7 tons)

The WR6000 winch combines power and lightweight design, making it ideal for Suzuki Jimny 4x4 vehicles.

The relay/control box can be mounted on the vehicle using the wiring harness and mounting plates.

Maximum pulling force: 2722 kg

Motor: 12V

Gear ratio: 198:1, 3-stage planetary steel gears

Braking: Automatic in-drum brake

Synthetic rope: 6.5 mm × 15 m

Drum size: 51 mm × 122 mm

Overall dimensions (L × W × H): 381 mm × 114 mm × 115.5 mm

Mounting plate dimensions: 190 mm × 145 mm

Winch weight: 10 kg
