MF coil suspension lift kit, +15cm flexible, Suzuki Santana Samurai 4WD
MF coil suspension lift kit, +15cm flexible lift.
To be assembled on short framed Suzuki and Santana 410 or 413, petrol and diesel.
Replaces leaf springs with spiral springs.
Increases considerably the suspension’s displacement amplitude and the comfort of your 4WD.
Fastening anchorage point to be welded on the frame.
Rigidity : flexible.

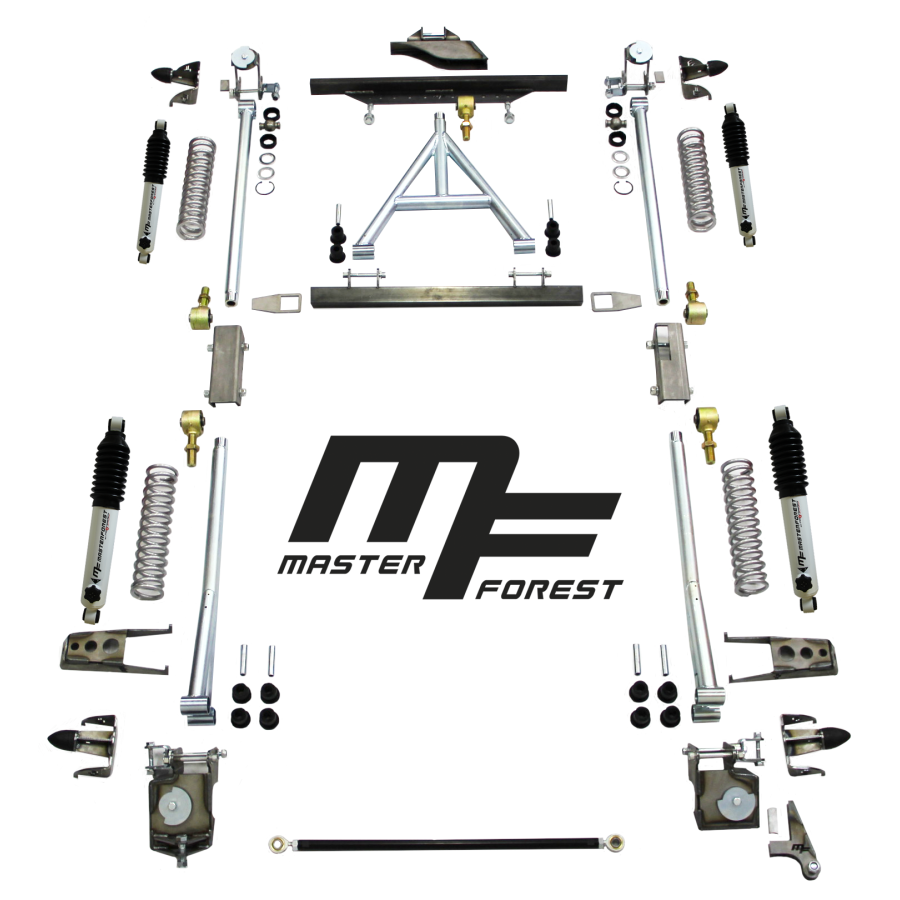

Kit details (see picture 1) :
4 coil springs + 4 stops + supports to weld on axle and frame.
4 adjustable MF shock absorbers + supports to weld on the frame.
2 front suspension axle rods + 2 adjustable ball joints + 4 silent blocs + fastening supports to weld.
3 rear suspension axle rods + 3 adjustable ball joints + 2 ball joints + 2 silent blocs + fastening supports to weld.
1 panhard rod + 2 adjustable ball joints.
Screws and assembly instructions included.
Modified Pitman arm or steering rod not included (replacement is advised for better road handling).
